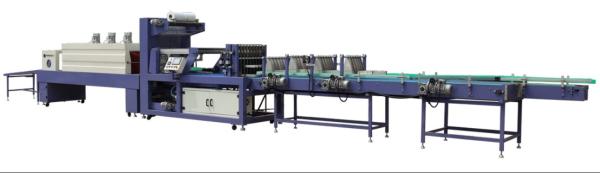

Conveying Automatic Shrink Packing Machine / Shrink Wrap Packaging Machine

    Buy cheap Conveying Automatic Shrink Packing Machine / Shrink Wrap Packaging Machine from wholesalers

    Buy cheap Conveying Automatic Shrink Packing Machine / Shrink Wrap Packaging Machine from wholesalers
    • Buy cheap Conveying Automatic Shrink Packing Machine / Shrink Wrap Packaging Machine from wholesalers

    Conveying Automatic Shrink Packing Machine / Shrink Wrap Packaging Machine

    Ask Lasest Price
    Brand Name : Yinma
    Model Number : Automatic Shrink Packing Machine
    Certification : ISO9001
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 10 units per month
    Delivery Time : 14 work days
    • Product Details
    • Company Profile

    Conveying Automatic Shrink Packing Machine / Shrink Wrap Packaging Machine

    Conveying Automatic Shrink Packing Machine / Shrink Wrap Packaging Machine


    Technical parameter:

    1. . Facility model: WD-350A type
    2. . Facility overall size: :L12000×W1100×H2100mm
    3. . Facility overall size: Main equipment:L3400×W1250×H2350mm

    Shrinkage machine:4200×1100×1700mm

    Conveying system:5200×1300×950mm

    1. . Wrappage max size:L600×W400×H350mm
    2. . shrinkage film material: PE
    3. . shrinkage film thickness:0.03-0.15mm
    4. . thermo shrinkage tunnel max temperature: 160 - 260° adjust at will
    5. . max output per minute: 18-20 bag
    6. . facility power:25Kw
    7. . actual power:20Kw/h
    8. . pressure requirement: 380V/50-60HZ
    9. . facility weight: 2500
    10. . air pressure: 0.6-0.8mpa
    11. . working noise:≤65db
    12. . import bottle convey belt width: 541mm
    13. . fan:1.1Kw 3set 380V, 60W 6set 380V
    Type:Automatic Shrink Packing MachineFacility Model:WD-350A Type
    Facility Overall Size:L12000×W1100×H2100mmWrappage Max Size:L600×W400×H350mm
    Shrinkage Film Material:PEMax Output Per Minute:18-20 Bag

    Product instruction

    1. . Taiwan TECO inverter stepless speed regulation.
    2. . Bottle pushing, thermo sealing and cutting whole movement adopt to AIRTAC pneumatic fracture.
    3. . AUTONICS proximity switch control film length.
    4. . SIEMENS touch screen, PLC system greatly increase facility movement reliability.
    5. . Three-wind recycle fan machine, ensure shrinkage tunnel inside even temperature.
    6. . Super big wind-volume cooling system, ensure quickly get into shape .
    7. . Anti-high temperature teflon convey belt, convey steadily, high-strength anti-abrasion.
    8. . Frequency limitless speed adjust convey belt frame.
    9. . convey belt height can make according client requirement, adjust range:±100mm
    10. . Wing stainless steel heating system, endurance
    11. . Meet with product instant stop requirement product-bearing rack device ensure production line consistency.

    Technical requirement:

    (1). package type:

    1000ML PET bottles: 3×3 package type.

    1. . package speed:18-20bag/min
    2. . meet with pre-treatment filling speed of filling machine. (7000b/hr)
    3. . package material:PE thermo shrinkage film width(200-600mm),thickness(0.03-0.12mm
